25AT-350-DN - ALMOTT 350AMP 24VOLT AIR-COOLED DUCTLESS CRADLE MOUNT ALTERNATOR
25AT-350-DN - ALMOTT 350AMP 24VOLT AIR-COOLED DUCTLESS CRADLE MOUNT ALTERNATOR
25AT-350-DN - ALMOTT 350AMP 24VOLT AIR-COOLED DUCTLESS CRADLE MOUNT ALTERNATOR
25AT-350-DN - ALMOTT 350AMP 24VOLT AIR-COOLED DUCTLESS CRADLE MOUNT ALTERNATOR
25AT-350-DN - ALMOTT 350AMP 24VOLT AIR-COOLED DUCTLESS CRADLE MOUNT ALTERNATOR

25AT-350-DN – ALMOTT 350AMP 24VOLT AIR-COOLED DUCTLESS CRADLE MOUNT ALTERNATOR

Complete form for price and availability

  • This field is for validation purposes and should be left unchanged.

Product Description

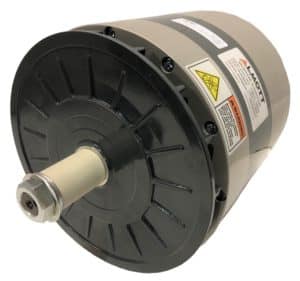

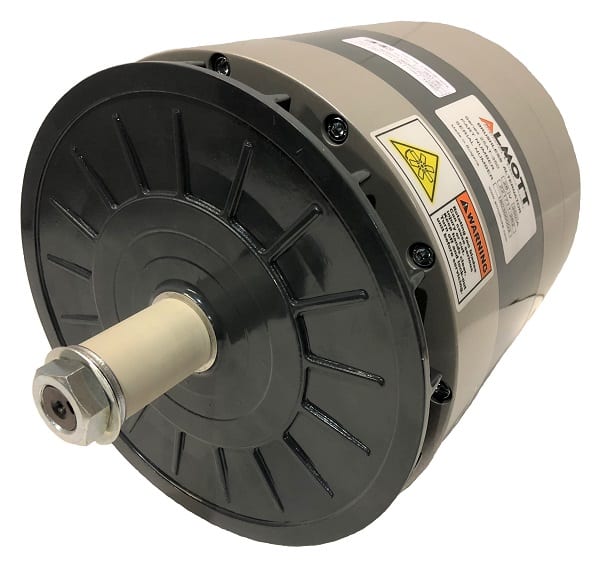

24VOLT 350AMP ALMOTT AIR-COOLED DUCTLESS ALTERNATOR

OE OPTION FOR REPLACING OIL-COOLED 50DN ALTERNATORS WITH AIR COOLED

  • Output a@2,000 RPM = 220 amps
  • High Efficiency over 86.5%
  • Low Inertia Advantage
  • Turn on speed = 1,200 rpm

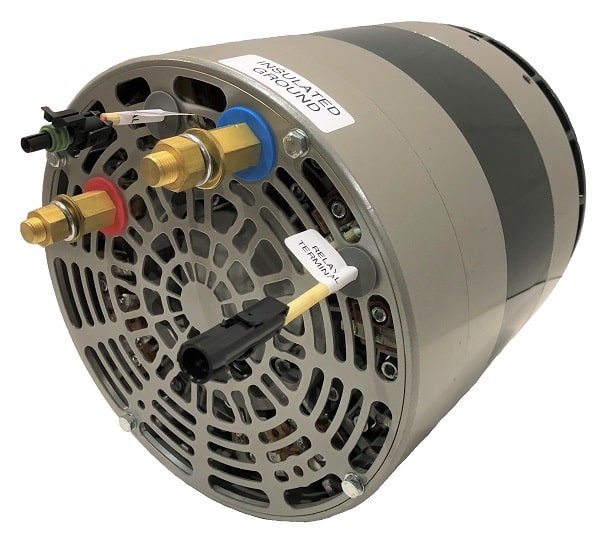

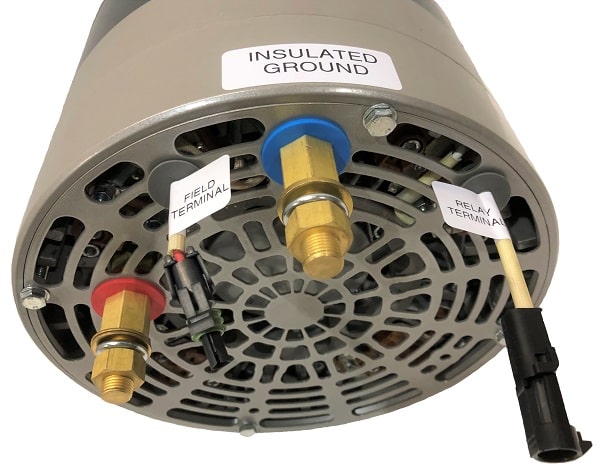

  • Isolated Ground
  • Remote regulator
  • Weight = 44 kg

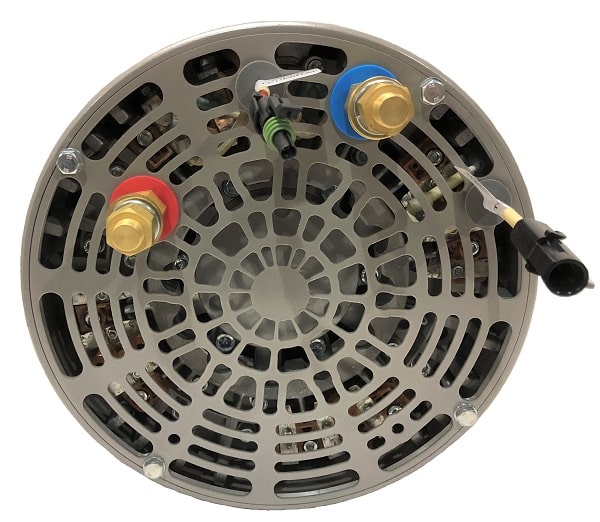

  • Vented at rear – No duct required.
  • 3 Year Warranty

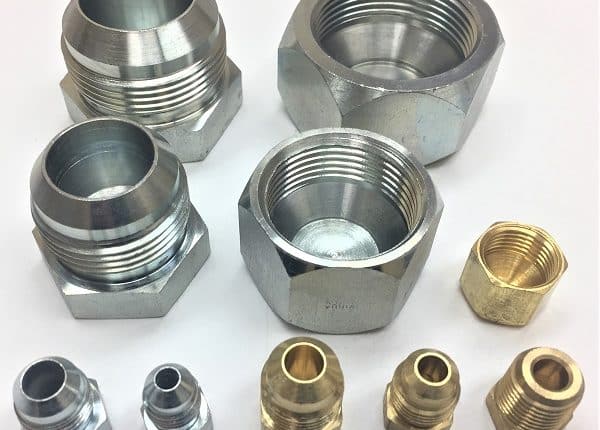

Note: If replacing a current oil-cooled unit, Oil Cap Kit Part #PX-8645 is available.

Product Details

Usage
Used onTransit Buses and Motor Coaches
Replaces

Delco 50DN: 8600191, 1117167, 1117707, 1117708, 1117799, 1117852, 1117853, 1117863, 1117864, 1117878, 1117879, 10459123, 8700077
NEW FLYER: 261018, 381517
PREVOST (NOVA): 56-2234, 381517, 562234, 562234
OBI (ORION): 070502006
Elreg: 402-1117863, 402-8600191
DelStar: 1300-40290, 130040290, 100-30201, 10030201, 100-30202, 10030202, 100-30204, 10030204, 100-30207, 10030207, 100-30209, 10030209, 100-30210, 10030210

Downloads

25AT-350-DN Ductless Brochure.pdf 25AT-350-DN Comparison Chart.pdf
