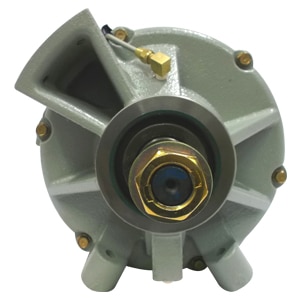

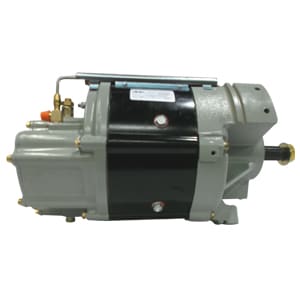

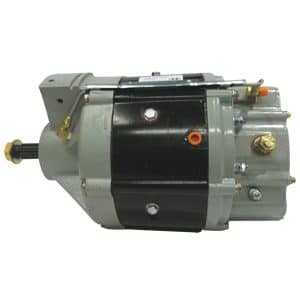

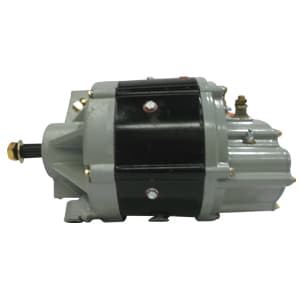

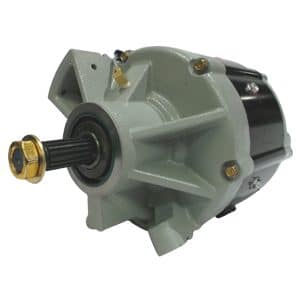

402-8600083 – 24VOLT 450AMP 50DN BELT DRIVE ALTERNATOR

Product Description

24VOLT 450AMP 50DN BELT DRIVE ALTERNATOR.

This is the newest and most powerful version of the 50DN Alternator ever produced! Some of the highlights –

• Belt Drive / Oil Cooled / 24 Volt / 450 Amps.
• Cradle Mount.
• Length: 17.83 in / 453 mm
• Weight: 109.7 lbs / 49.8 kg
• Diameter: 9.49 in / 241 mm
• Drive End Bearing (outer): 72 mm O.D.
• Rotor Bearing (inner): 85 mm O.D.
• Uses the same 50VR regulator #10503805 as previous 24 volt versions.
• Identical dimensions and therefore a drop in replacement to previous versions.

This is still an oil cooled unit but ideal for any coach or transit bus that has upgraded electronics and requires something with more output than the original 50DN was capable of providing.
