480-9567E – BOSCH T-1 ALTERNATOR 24VOLT 155AMP

Complete form for price and availability

  • This field is for validation purposes and should be left unchanged.

Product Description

The Bosch T1 Alternator has been used on many Transit and Coach Buses for many years now. They are very common on – Vanhool, Prevost, MCI, Scania, and Volvo. There are two installed on each bus to ensure that in the event one fails the other will keep the bus going until repairs can be made.
Elreg Distributors assembles our own brand T1 alternator and has been for going on 10 years now.

What are the benefits of the Elreg assembled T1?

  • Manufactured in Canada. (not offshore)
  • Assembled using 100% new OE compliant parts.
  • Use original INA & NTN bearings manufactured in Germany & Japan.
  • Use HUCO electronics manufactured in Germany.

What does 100% OE compliant parts mean? It means that the alternator is manufactured to the same specifications as the original Bosch design and that the parts are the same dimensions and totally interchangeable with the parts used on the original Bosch unit.

Elreg has a T1 Alternator to fit every coach originally fitted with one. There are four different designs and they are easy to identify if you know how. When looking at the alternator from the front with the SRE Mounting hole at 6 – 00 o’clock you can identify the alternators as follows –

  • 480-9535E – Both ears on the Drive-end frame have threaded mounting holes and are positioned at 10:00 & 6:00 o’clock. The bushing in the SRE mounting hole is fixed.
  • 480-9541E – Both ears on the Drive-end frame have threaded mounting holes and are positioned at 2:00 & 6:00 o’clock. The bushing in the SRE mounting hole is floating.
  • 480-9552E – The ear on the Drive-end frame at 6:00 o’clock is not threaded and the ear at 10:00 o’clock is threaded. The bushing in the SRE mounting hole is floating.

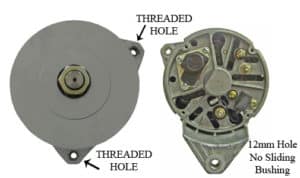

  • 480-9567E – Both ears on the Drive-end frame have threaded mounting holes and are positioned at 2:00 & 6:00 o’clock. The bushing in the SRE mounting hole is fixed.

Product Details

Usage
Used on

SETRA S417 WITH DETROIT 60 SERIES ENGINE. POSITION 1 & 2.

Replaces

BOSCH: 0120689567, 0 120 689 567, 0986046550, 0 986 046 550, 9120456044, 9 120 456 044
BOSCH USA: AL10054N
UNIPOINT: ALT-T155, ALTT155
MERCEDES (SETRA): A0071541902, A0091547202, A0091547702
PRESTOLITE: 1277650, 1277A650
DELCO: 19025336
