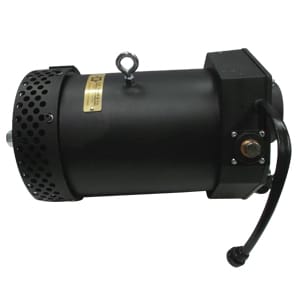

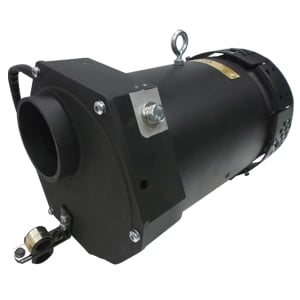

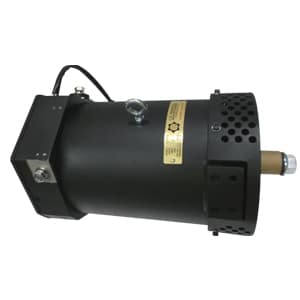

C-803D-R – 28VOLT 525AMP, NIEHOFF REMANUFACTURED ALTERNATOR

Complete form for price and availability

  • This field is for validation purposes and should be left unchanged.

Product Description

This is remanufactured by a C.E.Niehoff Factory Authorized Reman Facility – Elreg Distributors Ltd.

One of the highest output commercial alternator available! Made in the US & rated to SAE standards, the C803D / C-803D-R features a modular design which produces incredible low idle output ratings. The cradle mount makes the unit compatible with most major industrial engine manufactures.

Air Cooled – Eliminates the need for an oil circulation system. No possibility of oil leaks, no hoses, and no waste heat transferred to the engine.

High Efficiency – Means lower internal alternator operating temperature, resulting in longer alternator life. Less engine power needed to produce electric power means more engine power available for other needs

Unique Brushless Construction – Elimination of rotating windings, brushes and slip rings yields durability, extends service life, eliminates arcing and reduces electromagnetic interference. (EMI)

Direct Interchange – Steel rail mounting design is compatible with cradle mounting bracket

Long Life Bearings – Feature high temperature grease and are heat stabilized for extended service life in hot engine compartments

Conformal Coating – Protects regulator and rectifier against damage from vibration and corrosion.

D+ and P Terminals – Model has a P terminal for optional tachometer use and a D+ terminal for optional charge warning light use.

Mounting Configuration: Cradle Mount

Regulator: A2-330 (External)

Product Details

Usage
Used on

NEW FLYER 261018, 315960, 315330
NABI - FLYER - GILLIG
ALEXANDER DENNIS BUS
Replaces

ALEXANDER DENNIS BUS: 663534, 661655
GILLIG: 13-67462-006, 13-41633-004, 18-91271-000, 1367462006, 1341633004, 1891271000
C.E.NIEHOFF: C-803,C803, C803, C-803D, C803D, C-802, C802, C802
